Request a Demonstration at your Factory

Unlike others offering similar services, we can bring the steam cleaning technology to you and show you just how good it is! Request A Demo

Clean Hard to Reach Areas Quickly and Effectively

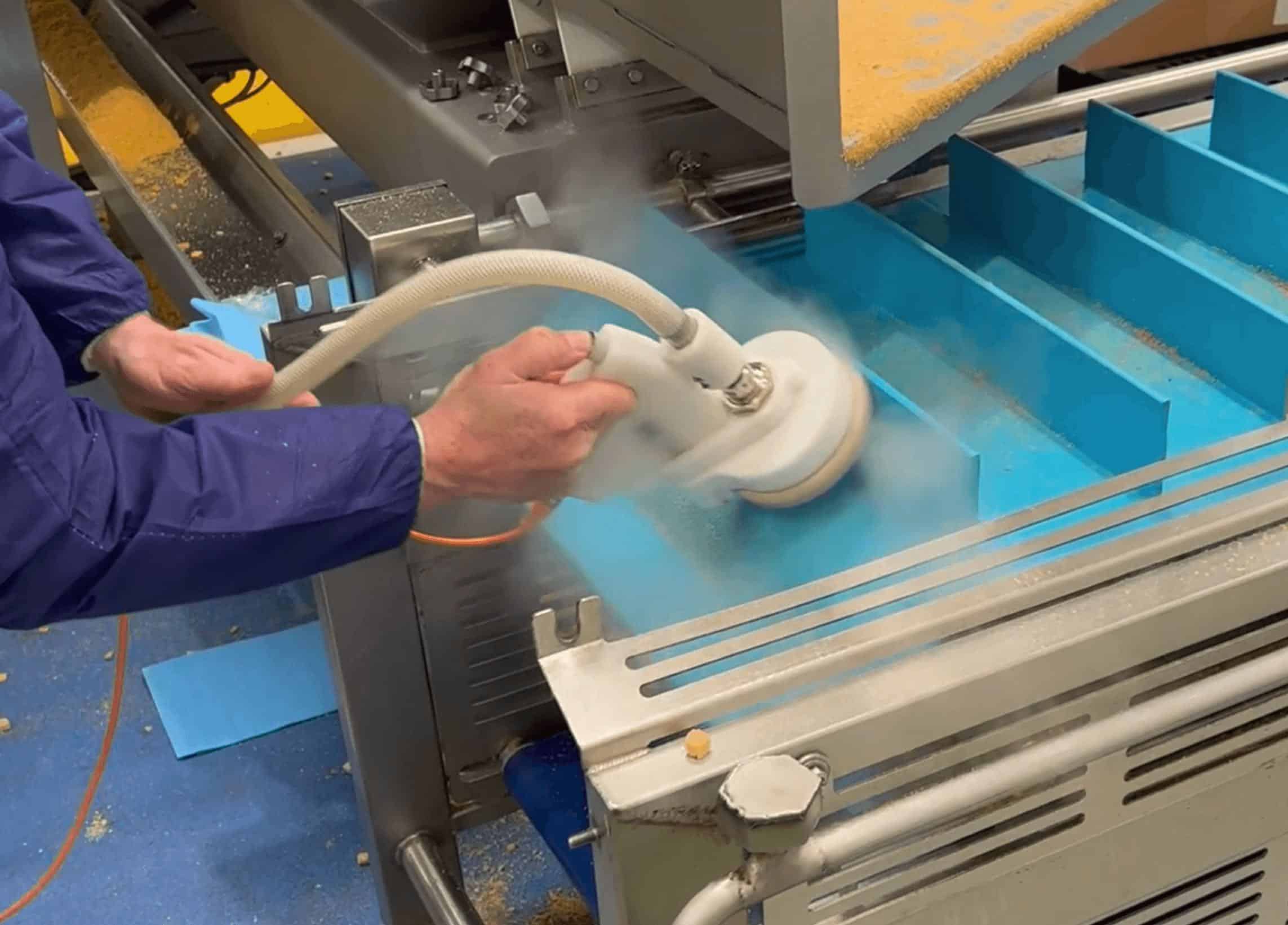

The Hand-Held Spinner by KHD Technology is designed to address the challenges of cleaning small conveyors and tricky spaces in your factory. This cutting-edge hand held steam cleaner combines precision engineering with powerful steam jets to deliver a safe, fast and comprehensive clean without harsh chemicals.





The Perfect Cleaning Tool for Factory Managers

Expertly crafted from a high specification technical plastic manifold, the Hand-Held Spinner achieves superior cleaning by releasing powerful jets of steam. Due to the force the jets are released safety has been imperative in the development of this product, selecting only the highest quality of technically sound materials.

Choose from concentrated power (110mm) or larger impact (180mm) depending on your cleaning needs.

The Hand-Held Spinner is a patented product.


How Does the KHD Hand-Held Spinner Work?

Powerful Steam Technology

Running on 24VDC power provided by the KHD18 or KHD36 steam generators, KHD hand-held spinners sweep around 1,200 jet passes per minute over the surface being cleaned.

Intelligent Design

Its smooth, cool to the touch form ensures no collision protrusions, while the easy to use trigger mechanism gives you complete start/stop control of both the steam and motor.

Versatile Applications

Ideal for cleaning small conveyor belts, hard to reach areas and other static surfaces that are difficult to maintain with traditional cleaning tools.

Features and specifications

Smooth form with no collision protrusions
High specification technical plastic manifold - cool to touch
The 110mm model for concentrated power, the 180mm model for larger impact area for easier to remove debris
Electrical cord supplied to suit steam hose length
Trigger switch starts/stops steam and motor
Steam power: 18kW or 36-72kW
Power supply: 24VDC via KHD Jet System
Swept diameters: 110mm, 180mm
Speed: Approx 1,200 jet passes per minute
Weight: 110mm = 1.6kg, 180mm = 1.95kg

Steam generators for this application

KHD18 Steam Generator

KHD18 Steam Generator

Our mid-range steam generator, the 18kW generator provides all the same benefits and features as the 9kW option, but with a 40L on-board reservoir to improve supply. Learn More
KHD36 Steam Generator

KHD36 Steam Generator

Using a 63A three phase power supply (5 pin socket), and featuring a max water usage of 51.6L/hr max (dry) and 66L/hr max (wet), the KHD36 is our most powerful dry steam generator. Learn More

Applications

  • Small conveyor belts
  • Hard-to-reach areas around your factory
  • Checkerplate
  • Safety flooring
  • Static surfaces

Frequently Asked Questions

How does the Hand-Held Spinner compare to traditional cleaning tools?

The spinner delivers faster, more efficient cleaning by operating at 1,200 jet passes per minute, surpassing conventional industrial lances in speed and coverage area.

Is it safe to use on all factory surfaces?

Yes, its high-specification materials and smooth, collision-free design ensure safety while effectively cleaning a variety of surfaces, including delicate ones.

Which model should I choose?

The 110mm model is ideal for concentrated, powerful cleaning, while the 180mm model is perfect for covering larger surfaces and removing debris with ease.

What power supply does it use?

The Hand-Held Spinner operates on 24VDC power, supplied through the KHD Jet System steam generators.

How can I see the Spinner in action?

You can request a free, no-obligation demo at your facility to experience the advantages of the Hand-Held Spinner firsthand.
